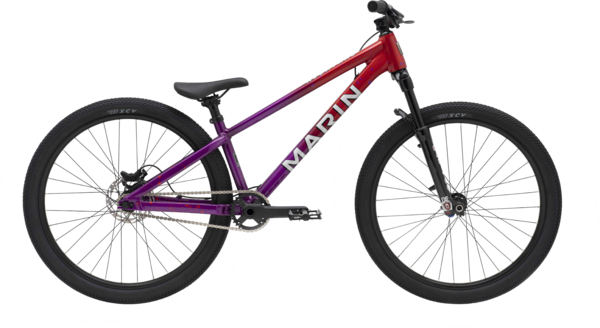

Marin Alcatraz 2
$1,599.00
Details
Unleash almost endless possibilities in the Matt Jones matrix with the Alcatraz 2.
A jump-busting Manitou Circus Expert fork smooths landings, while PNW’s Range handlebars and Marin CNC stem are the premium touch you deserve. Its Series 3 Aluminum frame is big-line tough and spin-it light. Dialed with short chainstays for poppy manuals and a low, short frame so it won't cramp your style – its geometry lets you level up without limits.
| Frame Size | Small | Large |
|---|---|---|
| Stack (mm0 | 575 | 580 |
| Reach (mm) | 385 | 430 |
| Headtube angle | 69° | 69° |
| Headtube length (mm) | 115 | 120 |
| Seattube length (mm) | 320 | 320 |
| Seattube angle | 69° | 69° |
| Toptube effective (mm) | 600 | 646 |
| Bb height (mm) | 317 | 317 |
| Bb drop (mm) | 22 | 22 |
| Chainstay (mm) | 395 | 395 |
| Wheelbase (mm) | 1037 | 1083 |
| Standover height (mm) | 370 | 400 |
| Fork offset (mm) | 42 | 42 |
| Seatpost diameter (mm) | 30.9 | 30.9 |
| Handlebar width (mm) | 750 | 750 |
| Stem length (mm) | 40 | 40 |
| Crank length (mm) | 170 | 170 |
Specs
| Bottom Bracket | External Sealed Cartridge Bearings |
|---|---|
| Frame | Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs |
| Fork | Manutou Circus Expert, 26", 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle |
| Rims | Marin Custom Extrusion, 27mm Inner, Pinned Joint |
| Hubs | Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire, XCV 26x2.25”, LSG Compound, Wire Bead |
| Crankset | Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD, 170mm Crank Length |
| Cassette/Freewheel | 14T Single Speed Cog |
| Chain | KMC HL-1 |
| Brake Levers | Tektro HD-M535 |
| Handlebars | PNW Range Handlebar, 38mm Rise, 35mm Clamp, 800mm Width |
| Tape/Grips | Marin Grizzly Lock-On |
| Stem | New Marin CNC Stem, 35mm Clamp |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin DJ Saddle |
| Pedals | Alloy Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Red Purple Fade / Small / 26-inch | 843346138996 | 741542001 | 210000015118 |
| Red Purple Fade / Large / 26-inch | 843346139009 | 741542002 | 210000015179 |
