Marin Rift Zone 2

Marin Rift Zone 2
  • Color: Blue Dark Blue
$2,299.00
Color: Blue Dark Blue
Size: Large
Wheel Size: 29-inch
Please select options Unavailable

Details

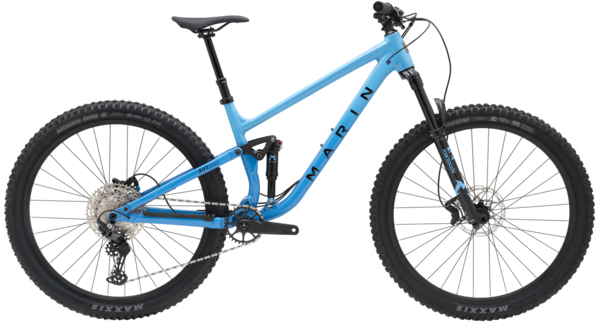

The Rift Zone 2 packs in the performance without emptying your wallet. Feel epic riding its 130mm MultiTrac suspension, shared with the range-toppers. The Series 3 Aluminum frame tames tight forest lines and open singletrack. X-Fusion's travel-adjustable dropper is matched with jaw-dropping kit from Marzocchi, Shimano and Maxxis.

Don't let the price tag fool you, the Rift Zone's kit is ready to thump and hammer or pop and glide down the trail. Marzocchi's 140mm travel Bomber Z2 fork is plush and controlled, and a perfect match to the new custom-tuned Bomber shock out back. Our latest addition, X-Fusion's travel-adjustable HC dropper seat post, will help you dial in the bike's fit for your proportions. Shimano's 12-speed Deore drivetrain shifts crisply, while we've amped up the traction with Maxxis's grippiest MaxxGrip Assegai up front and faster-rolling MaxxTerra Minion DHR II out back – both in EXO+ casing – round out the 10-out-of-10 spec list.

Our Series 3 Aluminum Rift Zone is a workhorse disguised as a beauty queen. It's got sleek, smooth lines and all the features you'll love. The front triangle has space for a ride-extending bottle, innertube and tools, or whatever else you want to bolt to its bosses. Cables route internally via our meticulously designed ports. Combined with the chunky chainstay protector, the Rifty's ride is as hushed as a whisper – unless you're yelling with joy at the top of your voice. SRAM's Universal Derailleur Hanger sits out back – replacements are widely available in case you get a little too wild.

Like spreading butter, our 130mm travel MultiTrac suspension smooths out the worst of the trail's imperfections while amping up the pop when you want to get airborne or really send it. On the Rift Zone 2, it's backed by a custom-tuned, super-sensitive and balanced Marzocchi Bomber Air shock that's ready for anything you can throw at it.

Balancing laughs, line choice and confidence-fueled moves, the Rift Zone's geometry is its ace in the hole. A calming 65.5-degree headtube angle and roomy reach figures combine with a playful 430mm chainstay for a personality-morphing ride. Weight the front of the bike for a tail-happy drift session or lean back for plenty of planted confidence.

The Rift Zone gives you two paths to fun: 27.5" wheels for endorphin-boosting agility or 29" wheels for grin-inducing high-speed thrills and better bump rollover.

Sizes:
SizeSmallMediumLargeX-Large
Stack (mm)600.7 605.2637.3641.8
Reach (mm)430 450485515
Head Tube Angle (degree)65.5 65.565.565.5
Head Tube Length (mm)120 125125130
Seat Tube Length (mm)390 400425430
Seat Tube Angle (degree)77 777777
Top Tube Length (Horizontal) (mm)568.7 589.7632.1663.2
BB Height (mm)339 339343343
BB Drop (mm)20 203535
Chainstay Length (mm)430 430430430
Wheelbase (mm)1164.8 1186.91234.41266.3
Standover Height (mm)677.8 687.8701.7700.5
Fork Rake/Offset (mm)44 444444
Seatpost Diameter (mm)30.9 30.930.930.9
Handlebar Width (mm)780 780780780
Stem Length (mm)35 35
Crank Length (mm)170 170

Specs

Bottom Bracket External Sealed Cartridge Bearing
Frame Series 3 6061 Aluminum Frame, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Fork Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Rear Shock Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
Rims Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Hubs Front: Shimano HF-MT500B, 110x15mm, Centerlock
Rear: Shimano HB-MT501B, 148x12mm, Centerlock, Micro Spline Freehub Body
Spokes 14g Black Stainless Steel
Tires Front: Maxxis Assegai MAXX GRIP, 2.5" EXO+ Rear: Maxxis Minion DHR II, MAXXTERRA, 2.5" EXO+, Tubeless compatible
Crankset Marin Forged Alloy, Integrated Steel 30T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing
Shifters Shimano Deore, 12-Speed, SL-M6100-R
Rear Derailleur Shimano Deore, 12-Speed, SGS
Cassette/Freewheel Shimano, Deore M6100, 12-Speed, 10-51T
Chain KMC X-12 Silver and Black
Brake Levers Tektro M5140 Hydraulic
Front Brake Tektro M5140 Hydraulic, 200mm Rotor
Rear Brake Tektro M5140 Hydraulic, 180mm Rotor
Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 40mm Rise, 5º Up, 9º Back
Tape/Grips Marin Grizzly Lock On
Stem Marin 3D Forged Alloy, 55mm
Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost Tranz-X YSI60QL Dropper Post, Adjustable Travel, 30.9mm Diameter, S = 150MM / M = 170MM / L-XL = 200MM
Saddle Marin Speed Concept
Accessories & Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blue Dark Blue / Large / 29-inch 843346138804 741534002 210000014091
