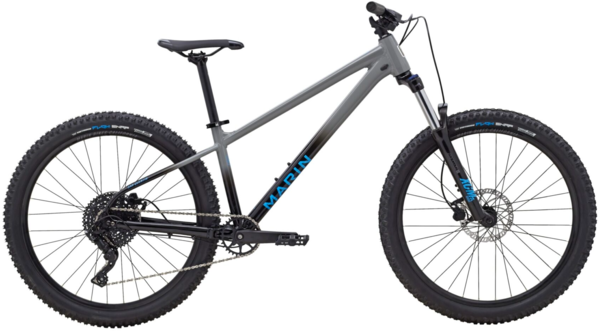

Marin San Quentin 1 - 29-inch
$959.00
Details
The San Quentin 1 is our bang-for-your-buck hardcore hardtail that looks and rides like a bike twice the price. Because why should fewer dollars in the bank mean fewer good times on the trails?
We've packed in an SR Suntour XCM34 suspension fork, Vee Tire Co tires, Tektro disc brakes and a load of awesome Marin components to create a bike you’ll love to rip, but that won’t shred your budget. And we've given it a bad-ass paint job that'll cut it alongside those big-bucks bikes.
| FRAME SIZE | SMALL | MEDIUM | LARGE | X-LARGE |
|---|---|---|---|---|
| STACK (mm) | 629 | 633.4 | 638 | 642.6 |
| REACH (mm) | 420 | 450 | 475 | 505 |
| HEADTUBE ANGLE | 66° | 66° | 66° | 66° |
| HEADTUBE LENGTH (mm) | 95 | 100 | 105 | 110 |
| SEATTUBE ANGLE | 75° | 75° | 75° | 75° |
| SEATTUBE LENGTH (mm) | 381 | 431 | 482 | 520 |
| TOPTUBE EFFECTIVE (mm) | 588.5 | 620 | 646 | 677 |
| BB HEIGHT (mm) | 318 | 318 | 318 | 318 |
| BB DROP (REAR/FRONT) (mm) | 60 | 60 | 60 | 60 |
| CHAINSTAY (mm) | 430 | 430 | 430 | 430 |
| WHEELBASE (mm) | 1145 | 1177 | 1204 | 1236 |
| STANDOVER HEIGHT (mm) | 697.55 | 742.45 | 786.98 | 818.91 |
| FORK OFFSET (mm) | 44 | 44 | 44 | 44 |
| SEATPOST DIAMETER (mm) | 30.9 | 30.9 | 30.9 | 30.9 |
| HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| STEM LENGTH (mm) | 35 | 35 | 35 | 35 |
| CRANK LENGTH (mm) | 170 | 175 | 175 | 175 |
Specs
| Frame | Series 2 6061 Aluminum 27.5 or 29" Wheel, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB |
|---|---|
| Fork | SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, Bolt-On Thru-Axle |
| Rims | Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible |
| Hubs |
Front: Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H Rear: Forged Alloy, Sealed Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Tires | Vee Tire Co., Flow Snap, 27.5/29x2.6", MPC Compound, Wire Bead |
| Bottom Bracket | Sealed Cartridge Bearing, Square Taper |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| Shifters | microSHIFT SL-M9195-R, 1x9 with Bearings |
| Rear Derailleur | microSHIFT RD-M9195M, 9 Speed, With Clutch |
| Cassette/Freewheel | SunRace, 9-Speed, 11-46T |
| Chain | KMC X-9 |
| Brakes | Tektro M275 Hydraulic Disc, 180mm Rotor |
| Brake Levers | Tektro M275 Hydraulic |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Tape/Grips | Marin MTN, Closed End |
| Stem | Marin Alloy, 45mm |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Nylon Platform |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Grey Black / Large / 29-inch | 843346130549 | 739085002 | 210000012916 |
