Marin Rift Zone E

Marin Rift Zone E
Please select options Unavailable
Sorry, this item is currently not available.

Details

MOUNTAIN BIKING WITH A BOOST

THE JACK-OF-ALL-TRADES MTB, ELECTRIFIED

MAXIMIZING FUN

One of the very best value eMTB’s around, the base model Marin Rift Zone E packs a crazy-powerful punch without busting the bank. RockShox and X-Fusion handle the suspension, Shimano Deore brings a tough, reliable 10-speed drivetrain, and Shimano’s brand-new STEPS EP6 drive unit powers you up, along, and down. A 504WH battery is supplied as standard, with the option to upgrade to a beefy 630WH for even more range.

SUSPENSION: RockShock 35 Silver R / X-Fusion 02 PRO R

TECHNOLOGY:

SERIES 4 ALUMINUM FRAME
Rift Zone E models are built upon our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

MULTITRAC SUSPENSION
The Alpine Trail E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system, with 140mm of suspension for the best on-trail experience.

SHIMANO STEPS
Shimano’s STEPS system is both powerful and lightweight, with the mid-drive motor down low to help ensure that the Rift Zone E performs like the analog version, but with a 250W boost. Three levels of power give riders options to balance electric power, speed and range. Electric assist up to 20mph in the US, 25km/h in Europe.

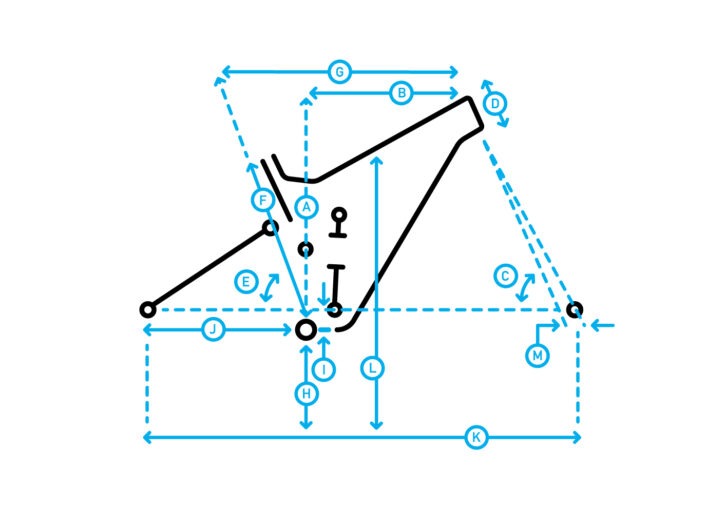

Geometry

Sizes:
SmallMediumLargeX-Large
A  STACK 606.98 614.04 625.1 634.16
B  REACH 445 465 485 515
C  HEAD TUBE ANGLE 65° 65° 65° 65°
D  HEAD TUBE LENGTH 100 110 120 130
E  SEAT TUBE ANGLE 77° 77° 77° 77°
F  SEAT TUBE LENGTH 390 400 425 435
G  TOP TUBE EFFECTIVE 585.13 607.22 629.32 661.41
H  BB HEIGHT 348.5 348.5 348.5 348.5
I  BB DROP 32 32 32 32
J  CHAINSTAY 440 440 440 440
K  WHEELBASE 1198.29 1222.52 1246.74 1280.97
L  STANDOVER HEIGHT 693.65 696.01 709.94 719.93
M  FORK OFFSET 42 42 42 42
SEATPOST DIAMETER 30.9 30.9 30.9 30.9
HANDLEBAR WIDTH 780 780 780 780
STEM LENGTH 35 35 35 35
CRANK LENGTH 160 160 160 160

Specs

Frame All New Series 4 Alloy Frame, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Fork RockShock 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
Rear Shock X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x50 25xM8 Lower Mount & Upper Mount
Rims Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Hubs Front: Shimano MT-410B, 110x15mm, Centerlock Disc, 32H
Rear: Shimano HB-MT400B, 148x12mm, Centerlock Disc, Standard Freehub Body
Spokes 14g Black Stainless Steel
Tires Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Override E-Specific Casing
Crankset Aluminum, 160mm Length, 38t Chainring
Shifters Shimano Deore, 10-Speed
Rear Derailleur Shimano Deore, Direct Attachment, 10-Speed SGS
Cassette/Freewheel Shimano Deore 10-speed 11-46T
Chain KMC X-10E, Silver
Brakes Front: TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor
Rear: TRP Slate Evo, 4-Piston Hydraulic Disc, Brake 203mm Rotor w/ Speed Sensor
Brake Levers TRP Slate Evo
Handlebars Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Tape/Grips Marin Grizzly Lock On
Stem Marin 3D Forged Alloy, 35mm
Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
Saddle Marin eMTB Saddle
Pedals Marin MTB Plastic
Accessories & Extras Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide
Motor Shimano Steps EP6 Drive Unit, 250W, 85Nm
Battery Shimano BT-EN805L, Internal 504Wh
Controller/Display Shimano SC-E600

* Subject to change without notice.
