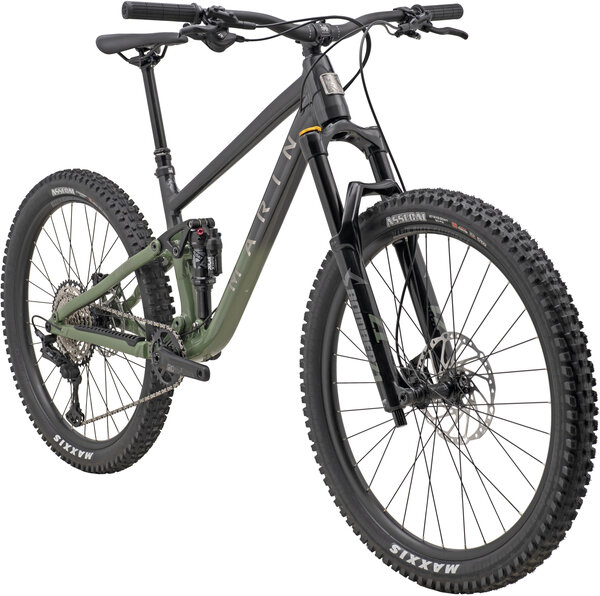

Marin Rift Zone 27.5 XR
Details
Riding a bike is fun, and having fun on the trail was at the front of our minds when creating the Rift Zone 27.5. Built around our MultiTrac suspension system, the Rift Zone 27.5 is our most playful and fun short travel suspension trail bike to date. Entry level through to high-performance spec, everyone can fall in love with mountain biking over and over again with the Rift Zone 27.5.
| Small | Medium | Large | X-Large | |
|---|---|---|---|---|
| Head Tube Angle | 65.5 | 65.5 | 65.5 | 65.5 |
| Head Tube Length (mm) | 120 | 125 | 130 | 135 |
| Seat Tube Angle | 77 | 77 | 77 | 77 |
| Seat Tube Length (mm) | 390 | 400 | 425 | 430 |
| Top Tube Effective (mm) | 568.7 | 589.7 | 610.8 | 641.8 |
| BB Height | 339 | 339 | 339 | 339 |
| BB Drop | 20 | 20 | 20 | 20 |
| Fork Offset (mm) | 37 | 37 | 37 | 37 |
| Stand Over Height | 677.8 | 687.8 | 682.3 | 687.8 |
| Wheel Base | 1164.8 | 1186.9 | 1208.9 | 1241 |
| Chain Stay (mm) | 430 | 430 | 430 | 430 |
| Seat Post Diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| Stack | 600.7 | 605.2 | 609.8 | 614.3 |
| Reach | 430 | 450 | 470 | 500 |
| Handlebar Width (mm) | 780 | 780 | 780 | 780 |
| Stem Length (mm) | 35 | 35 | 35 | 35 |
| Crank Length | 170 | 170 | 170 | 170 |
Specs
| Frame | All New Series 3 6061 Aluminum Frame, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork | Marzocchi Bomber Z1 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 37mm Offset |
| Rear Shock | Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom |
| Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Hubs |
Front: Shimano HF-MT410B, 110x15mm, Centerlock Rear: Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body |
| Spokes | 14g Black Stainless Steel |
| Axles | Bolt-On Thru-Axle |
| Tires | Maxxis Assegai, 27.5x2.5", MAXX TERAA, EXO, Tubeless Compatible |
| Bottom Bracket | Mego EXO 73mm BSA |
| Crankset | FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing |
| Shifters | Shimano Deore, 12-Speed, SL-7100R, I-Spec EV |
| Rear Derailleur | Shimano XT, 12-Speed, SGS |
| Cassette/Freewheel | Shimano, SLX 12-Speed, 10-51T |
| Chain | KMC X-12 Silver and Black |
| Brakes | Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor |
| Brake Levers | Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Tape/Grips | Marin Grizzly Lock On |
| Stem | Marin 3D Forged Alloy, 35mm |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Sold separately |
* Subject to change without notice.
