Marin Rift Zone Jr
Details
The Rift Zone 26 and Rift Zone Jr are for the ambitious kid looking to keep up with the adults and push the boundaries of the local bike park on a ride just as capable as its full-size counterpart. Both models utilize the same frame and fork, so a Rift Zone Jr is easily upgradable to 26" wheels and longer cranks as your little ripper grows. 26" wheels and longer cranks not included, but your local Marin dealer can source the parts.
- ONE SIZE: 4'1" to 4'9"
TECHNOLOGY:
24" WHEELS – UPGRADEABLE TO 26"
The Rift Zone Jr can fit 26" wheels down the road, extending its life and versatility.
AIR SUSPENSION
Easily adjustable air suspension is tunable for a growing kid.
INTERNAL ROUTING
The Rift Zone 26 and Rift Zone Jr are compatible with internally routed dropper posts, with internal rear derailleur routing for a clean look and snag free ride.
DISC BRAKES
Hydraulic disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.

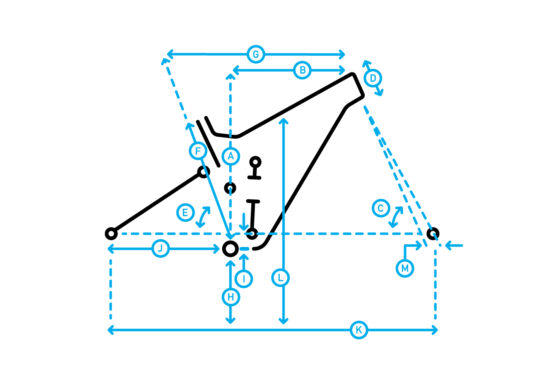

All lengths in millimeters
| ONE SIZE | |
|---|---|
| A- STACK | 536.24 |
| B- REACH | 380 |
| C- HEADTUBE ANGLE | 67.5° |
| D- HEADTUBE LENGTH | 105 |
| E- SEATTUBE ANGLE | 69° |
| F- SEATTUBE LENGTH | 335 |
| G- TOPTUBE EFFECTIVE | 536 |
| H- BB HEIGHT | 305 |
| I- BB DROP | 10 |
| J- CHAINSTAY | 428.5 |
| K- WHEELBASE | 1018 |
| L- STANDOVER HEIGHT | 621 |
| M- FORK OFFSET | 42 |
| SEATPOST DIAMETER | 30.9 |
| HANDLEBAR WIDTH | 720 |
| STEM LENGTH | 45 |
| CRANK LENGTH | 170 |
Specs
| Frame | Series 3 6061 Aluminum Frame, 24" Wheel with Clearance for 26", 120mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB |
|---|---|
| Fork | X-Fusion Velvet RLC 26", 120mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle |
| Rear Shock | X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware |
| Rims | Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| Hubs |
Front: Forged Alloy, 100x15mm, Disc, 32H Rear: Forged Aluminum, 32H, Disc Specific |
| Spokes | 14g Stainless Steel |
| Tires | Vee Tire Co, Flow Snap 24"x2.4", Tackee Compound, Wire Bead |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Crankset | Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type |
| Shifters | Shimano Deore, 11-Speed, SL-5100R |
| Rear Derailleur | Shimano Deore Shadow Plus |
| Cassette/Freewheel | SunRace 11-Speed, 11-46T |
| Chain | KMC X11 |
| Brakes |
Front: Shimano BR-MT200 Hydraulic Disc, 180mm Rotor Rear: Shimano BR-MT200 Hydraulic Disc, 160mm Rotor |
| Brake Levers | Shimano BL-MT201 |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back |
| Tape/Grips | Marin Dual Density |
| Stem | Marin 3D Forged Alloy, 35mm |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2" |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Sold separately |
* Subject to change without notice.
